Cisco: Configure a trunk port for Hyper-V

Originally published Last updated 2 comments

In this example, I installed a Windows Server 2008 Hyper-V server and connected its network uplink to a switch port on the default VLAN 1. My lab uses a separate VLAN, 2200. I wanted to test the new VLAN ID feature in Microsoft’s hypervisor.

Configure the Cisco trunk port

Sign in to the Cisco switch, enter privileged mode and open the configuration terminal. Enter or paste the following configuration:

Shell5 lines
1
2
3
4
5

interface GigabitEthernet0/1
description ** Uplink to Hyper-V windows box **
switchport trunk allowed vlan 1,2200
switchport mode trunk
!

In the Virtualization Management console, I created a new virtual machine and installed Windows Server 2003. During testing, I had a problem with the VM additions, and network connectivity did not work. I removed the existing NIC controller and added a legacy network adapter.

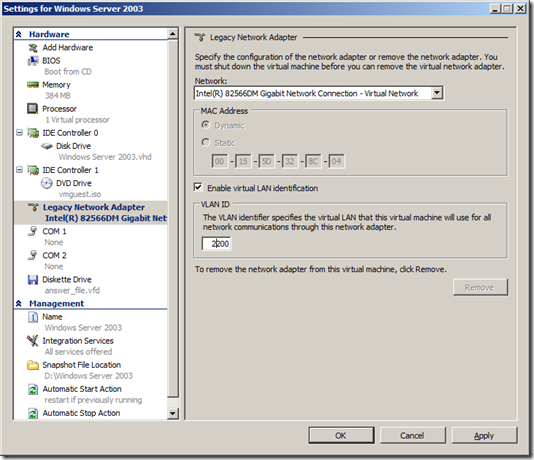

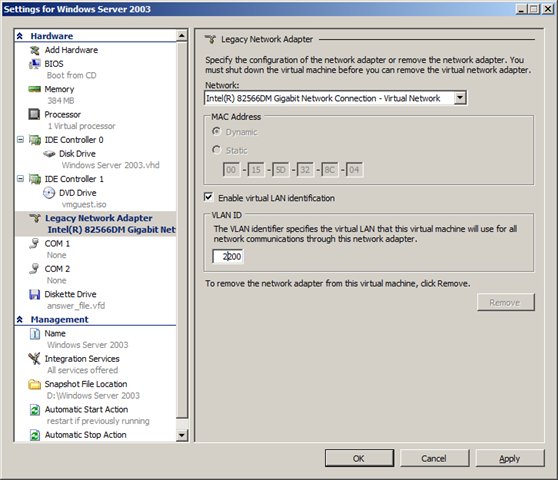

In the legacy network adapter settings, select “enable virtual LAN identification” and enter the VLAN ID. Click OK or Apply.

vlan-2200

It is good to see this feature integrated into Hyper-V. ESX has supported VLANs for a while, and Microsoft is catching up with the upcoming release of its hypervisor.

2 comments

Comments from the original WordPress site, kept read-only.

  1. Mathieu Tremblay

    It is highly recommended to NEVER put a trunk port in spanning-tree portfast to prevent broadcast storms and Cisco switches will not put a trunk port in portfast mode anyway so this line is useless in this case.

  2. WreknMathieu

    @Mathieu Tremblay

    For a Hyper-V port, yes, you should indeed put the port in portfast mode. Cisco switches WILL put them in portfast mode as long as the command is issued with the "trunk" modifier at the end. This is recommended.

    #spanning-tree portfast trunk
