Creating new VMWare Workstation Team in 5 minutes

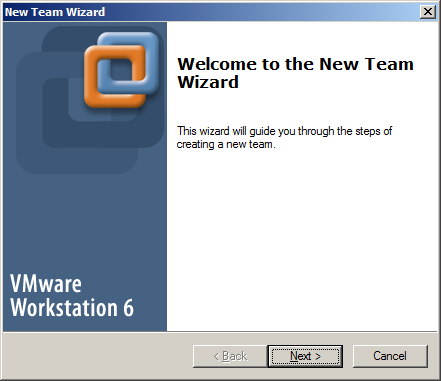

Start VMWare Workstation 6 ; go to File –> New and click Team or CRTL-N

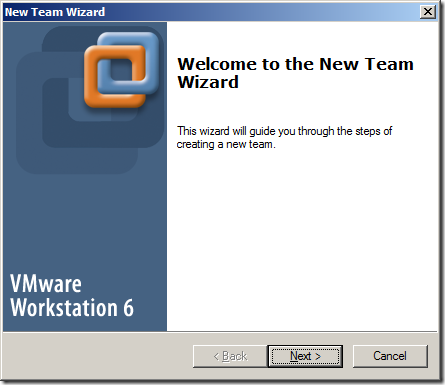

clip_image001

Click Next

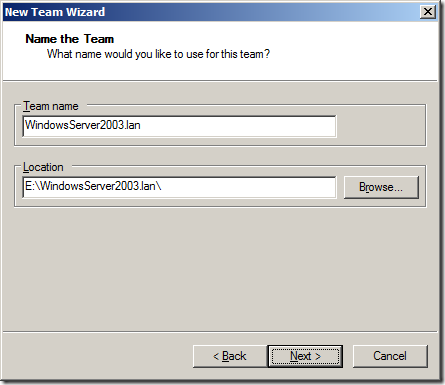

clip_image002

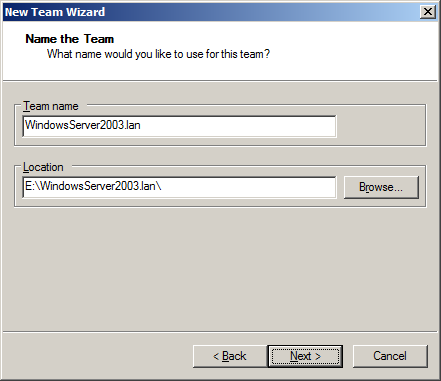

Enter the name of your VMWare team. For example WindowsServer2003.lan and put the files on a disk drive not used by the operating system. Putting the team on another disk spindle will improve the performance of the team.

Before I click next I went back to drive E:\ and copied a VMWare image which I stored in my template directory.

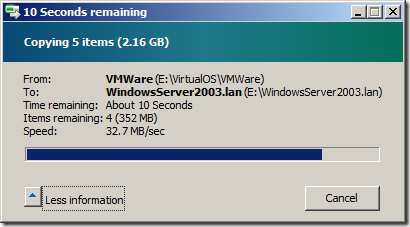

clip_image003

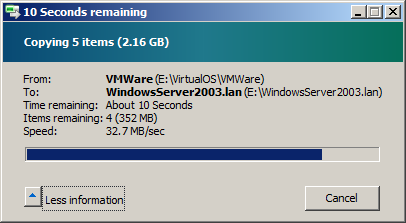

I copied this image from E:\VirtualOS\VMWare to E:\WindowsServer2003.lan directory and renamed the folder to MasterBuild.

Than go back to VMWare Workstation and click next.

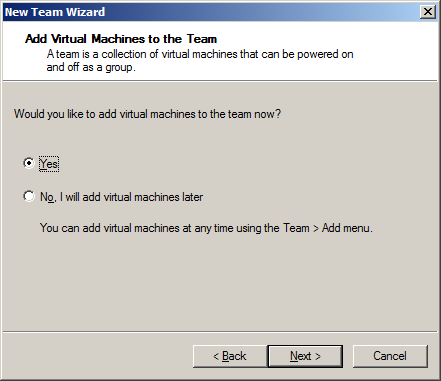

clip_image004

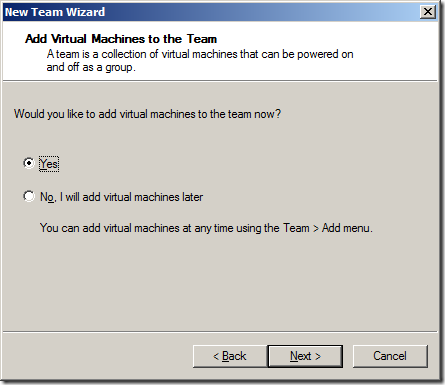

Click next

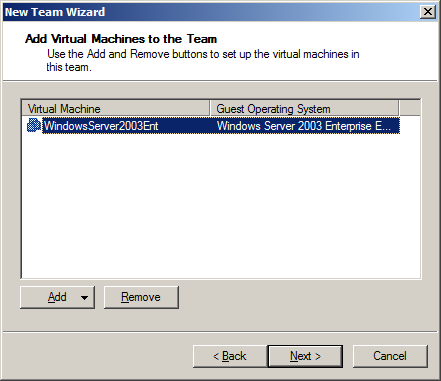

clip_image005

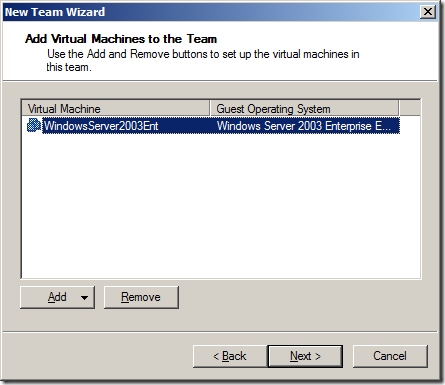

Click Add and choose to add an existing virtual machine; locate the directory on disk drive and click the vmx file open. As show above in my example with WindowsServer2003Ent; click next.

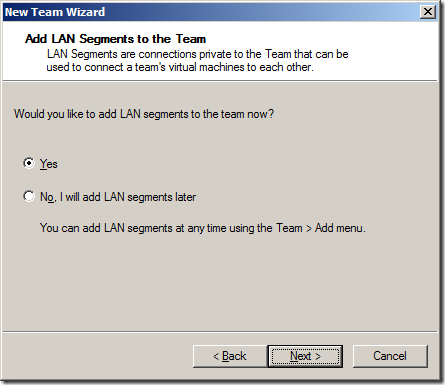

clip_image006

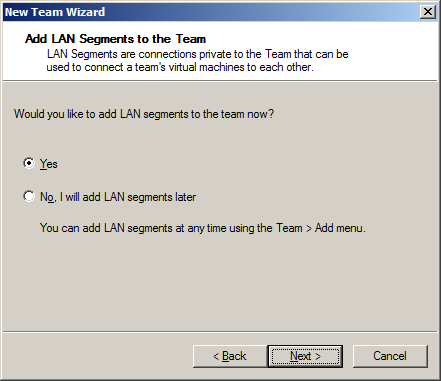

I choose to add a new LAN segment. I want to exclude any traffic from the virtual team into the physical LAN. Click next

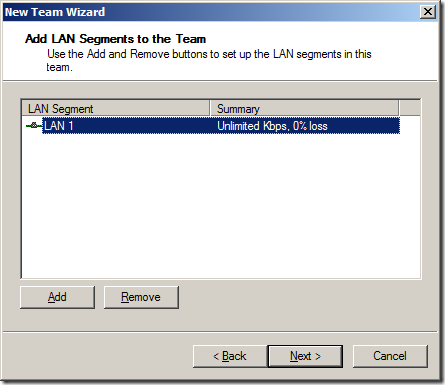

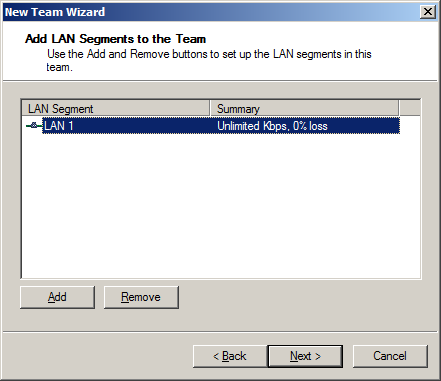

clip_image007

Click Add and click Next

clip_image008

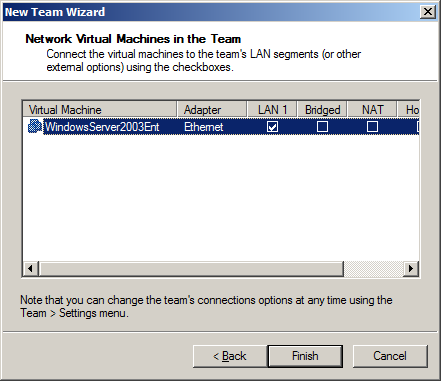

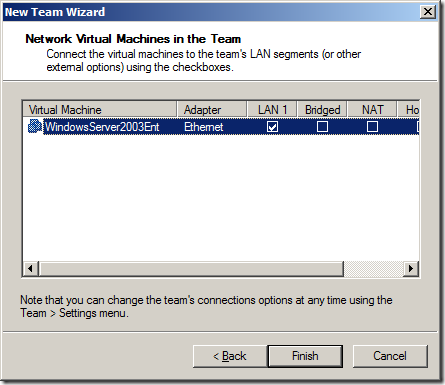

By default the Bridged is selected; check the LAN1 for the Windows Server 2003 and click finish.

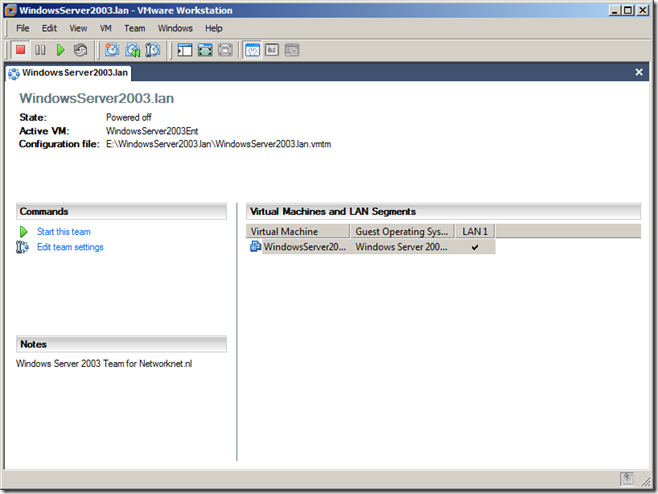

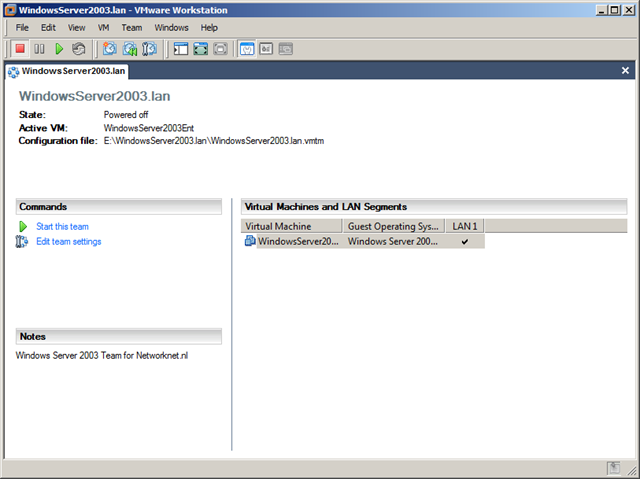

The VMWare Workstation team has been created.

clip_image009
